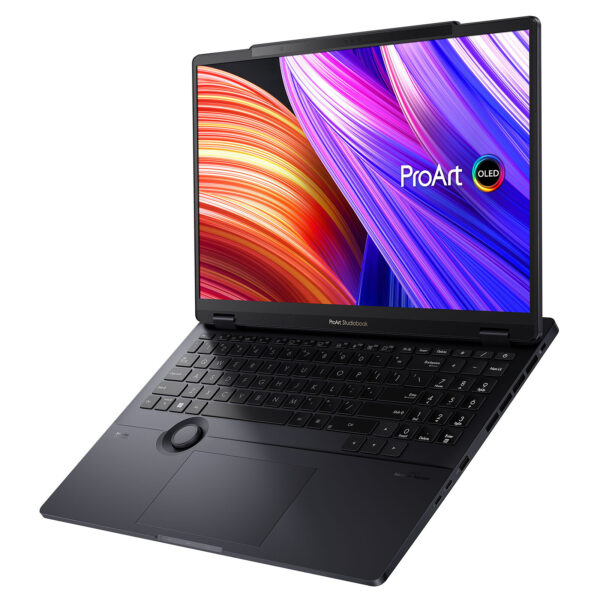

A powerful and practical workstation
The ASUS ProArt Studiobook Pro 16 laptop is designed to make it easier for creative professionals to bring their ideas to life. In addition to its high-performance components, this professional laptop boasts a stunning High Resolution OLED screen and an integrated DialPad to expand your possibilities.

A Powerful Mobile Workstation
The ProArt Studiobook Pro 16 was designed with one specific purpose: to provide you with all the raw performance you need for your most demanding and resource-intensive projects. It is equipped with a powerful Intel Core i9 processor, an NVIDIA RTX 3000 graphics card, and an ultra-fast SSD. The advanced NVIDIA Ada Lovelace architecture features real-time ray tracing and AI-accelerated computing capabilities, making it ideal for engineers, designers, and creators. A MUX switch lets you choose at any time between maximum low-latency performance directly on the screen and optimal battery life.
High-Resolution OLED Touchscreen
For high-quality creative work, you need a high-quality screen like the one on the ProArt Studiobook 16 OLED, which won’t disappoint. Its 3.2K 120Hz HDR OLED touchscreen is simply stunning, delivering truly photorealistic visuals certified by VESA DisplayHDR True Black 500 for ultra-high contrast and deep blacks, not to mention the industry-standard 100% DCI-P3 color gamut that ensures vivid, true-to-life colors. It is also Dolby Vision certified for realistic and ultra-vivid HDR images.


Optimized Cooling
ASUS IceCool Pro advanced thermal technology gives the ProArt Studiobook Pro 16 OLED an advantage in terms of performance and silence. Liquid metal on the CPU, five heat pipes, and larger dual 102-blade fans ensure optimal cooling performance. Per-key keyboard backlighting with an air intake design also optimizes airflow. All this technology keeps noise levels below 40 dBA in standard cooling mode, or you can unleash the full 150W combined CPU/GPU TDP when needed.
DialPad: A whole world at your fingertips!
Discover new ways to work with the innovative ASUS DialPad, an intuitive physical dial that lets you instantly and precisely control settings in your creative applications with your fingertips. You can easily change your brush size or saturation level, adjust image opacity, or quickly undo actions.
You can also adjust the brightness and volume, or scroll vertically to streamline your creative workflow. Over 70 functions are available for this purpose. The ASUS DialPad is currently compatible with four Adobe applications: Adobe Photoshop, Lightroom Classic, Premiere Pro, and After Effects. Furthermore, it is fully customizable and compatible with many other applications!


Superior Audio Quality
Key Features:
- Intel Core i9-13980HX Processor
- 64GB DDR5 Memory (2 slots – 64GB max.)
- 16-inch OLED Touchscreen with 3200 x 2000 resolution and 120Hz
- NVIDIA RTX 3000 ADA graphics card with 8GB of GDDR6 memory
- 1TB M.2 PCIe 4.0 SSD + 1 M.2 PCIe slot free
- Wireless communication Wi-Fi 6E + Bluetooth 5.3
- Backlit keyboard + Integrated ASUS Dial
- FHD IR webcam
- Windows 11 Professional
The local Specific Absorption Rate (SAR) quantifies the user’s exposure to electromagnetic waves from the equipment in question. The maximum permitted SAR is 2 W/kg for the head and torso and 4 W/kg for the limbs.
All products sold on the Electrovideo.eu website comply with this regulation. The SAR values for the products concerned are indicated in the technical specifications section of the product sheets.
Informations générales |
Désignation |
ASUS ProArt StudioBook Pro 16 W7604J3D-MY012X |
Marque |
ASUS | |
Modèle |
90NB10B1-M00300 | |
Système d'exploitation |
Système d'exploitation |
Windows 11 Professionnel |
Famille OS |
Microsoft Windows 11 | |
Langue de l'OS |
Français | |
Système d'exploitation fourni |
Oui | |
Processeur et chipset |
Marque processeur |
Intel |
Processeur |
Intel Core i9 | |
Type de processeur |
Intel Core i9-13980HX (8 Performance-Cores 5.6 GHz Turbo + 16 Efficient-Cores 4 GHz Turbo - 32 Threads - Cache 36 Mo) | |
Fréquence CPU |
5.6GHz | |
Nombre de core |
14 | |
Mémoire |
Taille de la mémoire |
64Go |
Type de mémoire |
DDR5 | |
Fréquence(s) Mémoire |
DDR5 4800 MHz | |
Taille de mémoire Max |
64Go | |
Graphismes |
GPU series |
NVIDIA Quadro series |
Chipset graphique |
NVIDIA RTX 3000 ADA | |
Taille mémoire vidéo |
8Go | |
Type mémoire vidéo |
GDDR6 | |
NVIDIA Studio |
Oui | |
Affichage |
Ecran tactile |
Oui |
Type de Dalle |
Dalle OLED | |
Type d'écran |
OLED | |
Taille de l'écran |
16pouces | |
Résolution Max |
3200 x 2000 pixels | |
Format de l'écran |
16/10 | |
Ecran large |
Oui | |
Dalle mate/antireflets |
Non | |
Dalle brillante |
Oui | |
NVIDIA G-SYNC |
Non | |
VR Ready (réalité virtuelle) |
Oui | |
Taux de rafraîchissement |
120 Hz | |
Luminosité |
550nit(s) | |
Stockage |
Configuration disque(s) |
SSD 1 To |
Disque fourni |
SSD 1 To | |
Disque secondaire |
Sans disque secondaire | |
Type de Disque |
SSD (Solid State Drive) | |
Nombre de disques |
1 | |
Nombre de disques max |
2 | |
Emplacement(s) libre(s) pour disque dur |
M.2 - PCI-E NVMe | |
Lecteur Optique |
Aucun | |
Lecteur de cartes |
SD (Secure Digital) | |
Communication |
Norme(s) réseau sans-fil |
Wi-Fi 6E |
Technologie Bluetooth |
Bluetooth 5.3 | |
Technologie Intel vPro |
Non | |
Sans-fil |
Oui | |
Multimédia |
Webcam |
Oui |
Type de H.P |
Intégrés | |
Equipement |
Type d'activités |
Graphisme |
| Professionnel | ||
Intel Evo |
Non | |
Norme du clavier |
AZERTY | |
Localisation |
Français | |
Clavier rétroéclairé |
Oui | |
Clavier RGB |
Non | |
Pavé numérique |
Oui | |
Lecteur biométrique |
Oui | |
Office fourni |
Non | |
Connectique |
Connecteur(s) disponible(s) |
1 X Casque (Jack 3.5mm Femelle) |
| 1 X RJ45 Femelle | ||
| 1 X Jack 3,5mm Femelle Stéréo | ||
| 2 X USB 3.1 | ||
| 1 X HDMI 2.1 Femelle | ||
| 2 X Thunderbolt 4/USB-C | ||
Caractéristiques physiques |
Couleur |
Noir |
Profondeur |
271mm | |
Largeur |
356mm | |
Epaisseur Avant |
20.9mm | |
Epaisseur Arrière |
23.9mm | |
Poids |
2.4kg | |
Gamme |
ASUS ProArt StudioBook | |
Ultrabook |
Non | |
Hybride / Convertible |
Non | |
DAS tronc |
0.995W/kg | |
DAS membres |
0.995W/kg | |
Indice réparabilité (sur 10) |
6.3 | |
Définition de l'indice |
L'indice de réparabilité des produits s'inscrit dans le cadre de la LOI n° 2020-105 du 10 février 2020 relative à la lutte contre le gaspillage et à l'économie circulaire. Une note de 1 à 10 est attribuée au produit en fonction de son "degré" de réparabilité. 5 critères sont pris en compte pour établir cette notation (durée de disponibilité de la documentation technique, caractère démontable de l'équipement, durée de disponibilité des pièces détachées, rapport entre le prix de vente des pièces détachées et le prix de vente de l'équipement, critères spécifiques à la catégorie d'équipements concernée). L'indice de réparabilité est obtenu en additionnant les cinq notes obtenues puis en divisant ce total par dix pour exprimer une note synthétique sur une échelle de 1 à 10. | |
Alimentation |
Capacité de la batterie |
90Wh |
Nombre de cellules |
4 | |
Batterie amovible |
Non | |
Charge de la batterie par USB-C |
Non | |
Garanties |
Garantie commerciale |
2 ans constructeur
5 ans vendeur
|
Garantie légale |
Voir les modalités
|
